Indoor Flooring Types:
| ActionSport 45 | Badminton | Bateco | Isolsport | Maple Design 3D | Maple Design M |
| Maple Design PSport 3D| Sport M | Sport Performance | Taraflex Surface | Taraflex Table Tennis
| Taraflex Track | Tennis Tournament |

Recommended Applications
Multi-
Purpose
Basketball Volleyball Soccer
(indoor)
Team
Handball

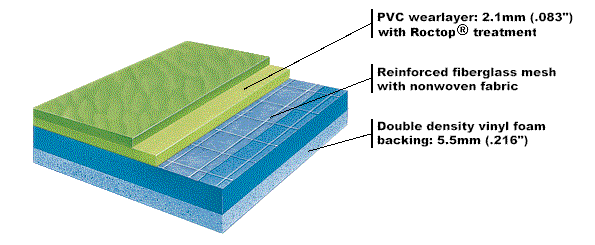

Surface Diagram
Sport 3D
Technical Data
Width of roll 4'11" (1.50m) Linear Dimension
ASTM / D 1042
Less than 0.50%
Length of roll 95 feet max Fungus Resistance
ASTM / G 21
Complete by addition of SANOSOL®
Total thickness 8.0 mm >Critical Radiant Flux
ASTM / E 648
>0.45 W / cm2
Class 1*
Weight (lbs/sq ft)
Weight (Kg/SQM)
1
5 kg/m2
Hardness Shore A
ASTM / D 2240
81
Abrasion resistance taber
ASTM / C 501 (in mg)
109 Sound Isolation
ISO 717 / 2
D L > 25 dB
>Static load limit (psi) 200 p.s.i. Ball rebound
DIN 18032
98%
Dynamic load limit (psi) 100 p.s.i. Shock absorbing properties. G max of playing surface systems and materials
(height: 15cm)
ASTM F 355
800
Dynamic load limit (N)
DIN 18032
1500 N Sports characteristics
DIN 18032
-Shock absorption
-Coeff. of friction


40%
0.47 to 0.55
Chemical resistance
ASTM / D 543
Excellent Light reflection available upon
request
Compression Set
ASTM / D 395 B
Greater than 90%
immediate recovery
* Flame spread rating as per ASTM E 648 - Critical Radiant Flux 0.45 watts/cm2 , or more (Class 1). As per ASTM E 662, smoke (4 minutes) - 450 or less. Other formulations can be made available on a special order basis. Call Taraflex for pricing, availability and minimum requirements. Numerical ratings do not necessarily constitute product performance under actual fire conditions. They are merely provided for product classification purposes.
¡@
