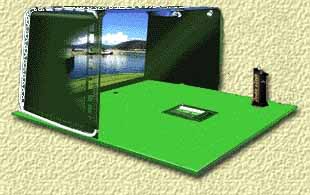

The Double Eagle 2000 Premier Technical Specifications

Area
The frame and platform are 14' wide x 22' long x 9''6" high.  A playing area 15' wide x 25' long with a 10 ' ceiling is recommended.

PUTTING TURF
14' wide x 22' 4' long (427 cm x 681 cm).  The putting turf is specially designed to simulate a real green.  The texture reacts like a green for realistic putting in both speed and distance.

SCREEN
12' wide x 9' high.  It is fabricated from a durable nylon fabric, with a special fire retarding backing.  It also provides a very high definition surface for the projection of the golf course.

PLATFORM
14' wide x 22' 4" long x 3" high. Constructed on site of high-grade 2" x 4" lumber, which is covered with 3/4" plywood and Par T Golf putting turf.   The platform doubles as a putting green and a base for the canopy frame.

CANOPY FRAME
This attractive, rounded corner, curvilinear frame is 14' wide x 16' long x 9' high, and is made of 1 1/2 inch square tubing.  It rests on the platform and supports the Canopy Frame.

PAR T OPTISENSE™
Extremely accurate ball-flight tracking system, consisting of three infrared lights and three highly sensitive cameras which detect the ball while in flight.  The Optisense housing is attached to the frame above the golfer.

VIDEO PROJECTOR
Multiple scan, 16.7 million color video projector with simple digital convergence for adjusting. Suspended from the frame or mounted above the golfers from the ceiling.

PUTTING CUP
This 4" diameter cup has electronically fitted sensors which detect a ball in the cup. Golfers can make a real "Hole-in-one" or "Holed Out" shots, just like outdoors.  The cup is located in the platform near the screen.

CANOPY
A safety area for flying golf balls is created by suspending this double-woven nylon canopy, with green sides and a blue top, from the frame.

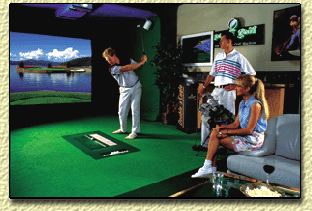

MOVIES, VIDEO GAMES & TEACHING AIDS
The huge screen can also double as a movie screen when not in use for golfing. Satellite reception, laser disks, VCRs or video games can be connected to the system and projected onto the screen.

THE CONTROL CONSOLE
The easy-to-operate console is activated simply by pressing the touch panel, and play begins by following easy instructions on the display.  This completely redesigned console features a state-of-the-art PENTIUM™ microprocessor, CD ROM drive, track-ball controls, a 3" x 5" touch sensitive backlit LCD display panel and a built-in score-card printer.  The console measures 12" wide x 12" long x 46" high.  The commands are very intuitive as it is built with the golfer, not the computer programmer in mind. Because of the modular computer design, upgrades are easy to install.  Optronics maintains an aggressive upgrade policy.  The durable CD ROM technology uses actual photographs of world famous golf courses.  The ease of operating this user friendly console invites your customers back to enjoy additional rounds of indoor golf at your facility.


球台 :427cm寬,681cm長,80cm高,木制結構,表面覆蓋球毯。既可以模擬推杆區,又是頂棚框架的底座。

螢幕:366cm寬,275cm 長,由結構的尼龍背襱特殊阻燃材料組成,表面分辨率高,可以映出清晰逼真的高爾夫球場影像。

頂棚:造型美觀的雙層尼龍頂棚由藍綠兩層尼龍組成,包在框架上,用作防護屏障,阻擋打飛的高爾夫球。

球穴:直徑10cm的球穴帶有電子感應器,能探測到入穴的高爾夫球。球手如同在室外一?可以打出"一擊入穴"或"入穴"球。


正是不可思議的Par T Tri - Turf ,不可思議的高爾夫球毯使Optronics高爾夫模擬器在同行之中領先一步。球毯停球位置可有三種選擇在:
(1)球座或球道:該區質地較硬,可以採用常規木制球座,而從這塊松軟的類似草地的表面可打出球道球。


(2)深草區:這塊柔軟織物可使高爾夫球陷入一定深度,使每棒正常距离減小13%,同室外染草區相差無几。


(3)沙土障礙:沙區是一塊柔軟的白色聚乙烯,能使高爾夫球深深陷入,同真實的沙球相差無几。
這種球毯具有酷似自然草皮的彈性,落球感覺真實自然,并最大限度的減少了球手肘部受傷的可能性。在19''寬 X 24''長的Par T Tri-Turf 球毯上的任何位置均可擊球

場地 :室內高爾夫球場的框架及球台的尺寸為 427cm寬,701長,高為 290。推荐安裝場地最小尺寸為500cm寬,800cm長,300cm高。

球毯 : 427cm寬,681cm長,模仿自然的推杆區草皮設計,其彈性速度及距离均與自然草皮相似。

頂棚框架 :造型美觀的曲線型型框架為427cm寬,366cm長,275cm高,由1/2"方管構成,安裝在球台之上,支撐頂棚。

Par T Optisense光感器 : 高精度的飛球跟蹤設備,由三支紅外線燈和三個高靈敏度的數字式攝影机組成,對飛行中的高爾夫球進行探測.
